Five Advantages Of Products

  • 1. Accurate: High precision laser displacement sensor measurement of plate bending plate become warped values with high stability;
  • 2. Intelligent and efficient
  • Take use of high-speed data communication, precision platform, real-time image data display technology;
  • The modular design, online detection speed can reach 12.5 m/min, automatic identification of OK/NG and receiving respectively.
  • High precision laser displacement sensor measurement of plate bending plate become warped values with high stability.

Product Details

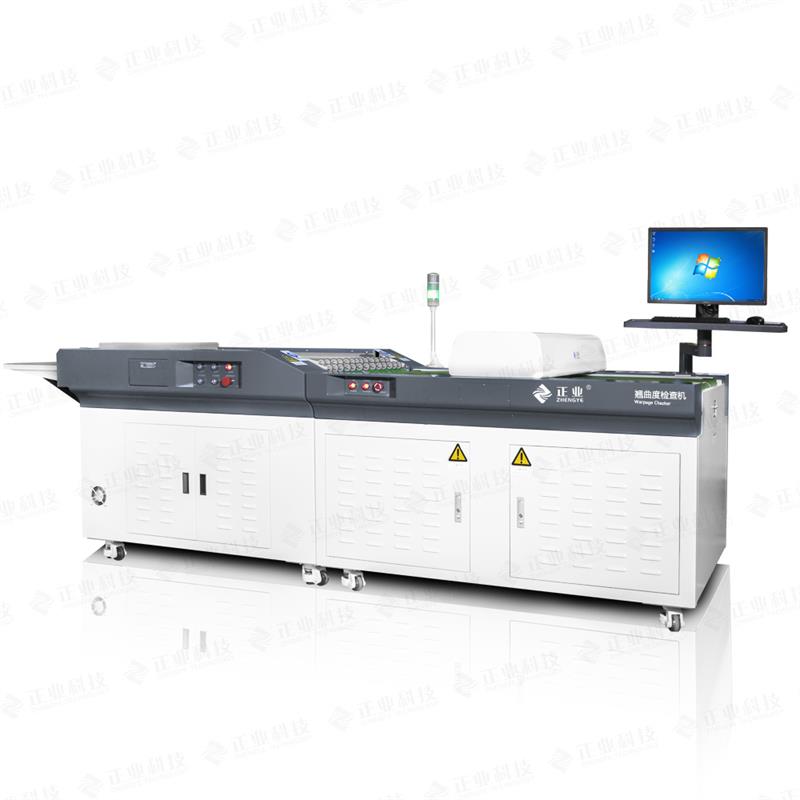

PCB Warpage Checker (QQ1000/QQ3000)



USAGE

This machine is used for detecting plate bending and warping on PCB finished plate or a copper clad plate, and make OK, NG judgements automatically according to the detection result.

CHARACTERISTICS

1. Accurate: High precision laser displacement sensor measurement of plate bending plate become warped values with high stability;

2. Intelligent and efficient:

    Take use of high-speed data communication, precision platform, real-time image data display technology;

    The modular design, online detection speed can reach 12.5 m/min, automatic identification of OK/NG and receiving respectively.


TECHNICAL PARAMETER

ITEM                                                         QQ1000                             QQ 3000

Inspection Accuracy                                        ±0.15mm (Standard Gauge Block)

Inspection Speed                                               6.5m/min, 12.5m/min (Optional)

Objects           PCB Thickness                0.5mm~5.0mm                   0.5mm~10.0mm

                     Warpage                          0.3mm~5.0mm                   0.3mm~5.0mm

                     Board Size                    Min: 40mm×80mm              Min: 80mm×40mm

                                                     (Without unloading plate)         (Without unloading plate)

                                                           Max: 480mm×500mm          Max: 630mm×300mm

Dimension(L×W×H)                                         3510mm×1160mm×1050mm

Weight                                                                               450KG
