Product Details

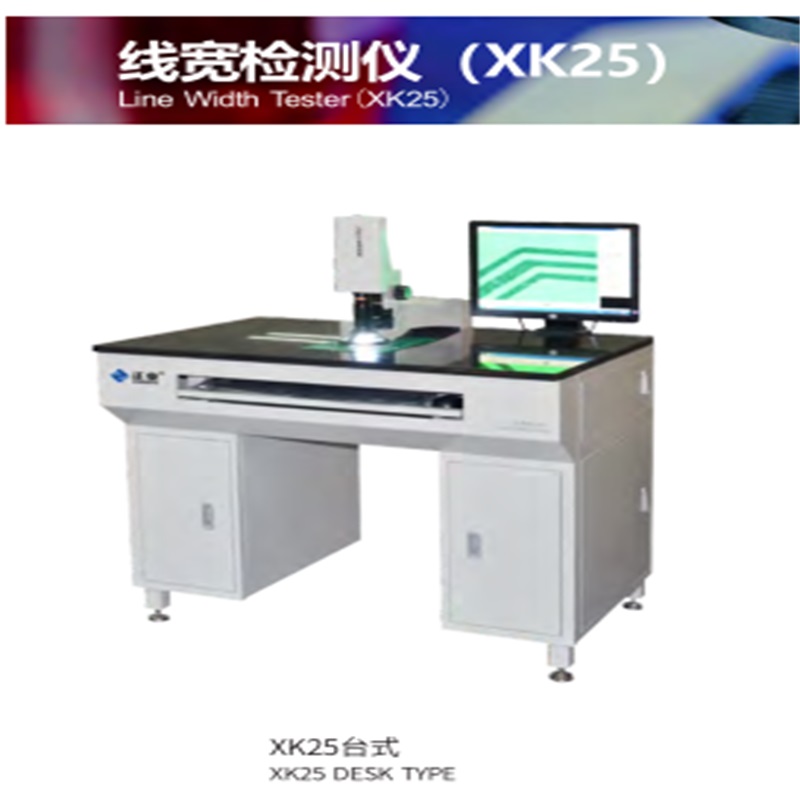

PCB Line Width Tester (XK25)



USAGE

These instruments are suitable for measuring the widths of inner and outer range of semi PCB after etching (before solder masking). The distance between two lines, distance between holes and edge, diameters of round holes, blind holes and arcs can also be measured. In addition, measuring widths of IC wafer, thickness of films and LCD boards are available.

CHARACTERISTICS

1. Precise: Adopting high-precision focus distance adjustable device, image processing, automatic boundary and sub-pixel algorithms technologies.

2. Efficient: Red LED positioning;

    Automatic boundary technology;

    Perfect function of SPC statistics.



TECHNICAL PARAMETER

ITEM                                                                                XK25

Accuracy       Measurement Accuracy                                ±1μm

                     Resolution                                           0.4μm/pixel~2.7μm/pixel

                     Total Magnification                                  70X~450X

                     Optics Magnification                     1.4X~9X Continuously Adjustable

Objects        PCB Width                                                760mm

                    Field of View                                  0.53mm×0.4mm~3.3mm×2.5mm

                    Line Width                                              20μm~1200μm

Appearance Dimension(L×W×H)              960×780×1280mm (Without Computer)

 Weight (Without Computer)                                            145KG
