Product Details

Contact Us

Five Advantages Of Products

  • Two-dimensional measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements.
  • A three-dimensional measuring probe is optional.
  • Two-dimensional measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements.
  • A three-dimensional measuring probe is optional.
  • Two-dimensional measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements.

Product Details

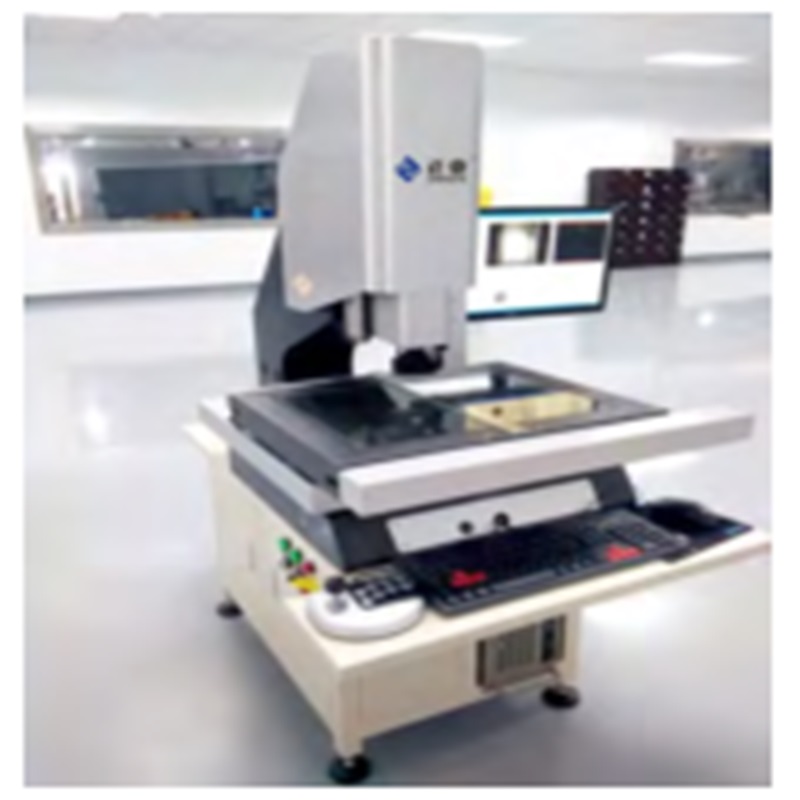

PCB Coordinate Measuring Machine

Auto/Manual Type Video Measuring Instrument

EC11-4030/5040


USAGE

Two-dimensional measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements. A three-dimensional measuring probe is optional.


TECHNICAL PARAMETER

ITEM                                          6050A                    8060A                  120100A              220180A

X.Y.Z Stroke (mm)               600×500×200        800×600×200     1200×1000×200    2200×1800×200

Loader Size(mm)                      698×665                 896×778               1400×1100          2300×1900

Max Loading                                                                       30KG

Base Materials                                                00 Grade Jinan Dark Green Granite

Objective Lens Focal                                                          90mm

Objective Lens                                                                   0.7~5X

Total Max Magnification                                                     25~180

Grating Solution                                                              0.001mm

Linear Accuracy                            E2≦±(2.5+L/200)μm                                  E2≦±(3+L/150)μm

Repeat Accuracy                                                              ±3μm

Total Machine                 1850×1960×1800    1950×2060×1800    2500×1800×1800  3500×3000×1900

Size(L×W×H)(mm)

Total Machine Weight            1800KG                   2000KG                 3800KG                7500KG

Measuring Software                                    ASIDA MEASURE VMA 3.00.01

Data Output Format       DXF, WORD, EXCEL, etc.; can customize output format

OS                                                                                 Windows 7

PC Requirement                                                             IPC-610H

Power                                                                       220V/50Hz/10A

Work Environment                Temperature: 20°C±3°C; Temperature Variation: <2°C/hr;

                                          Humidity: 30~80%; Vibration<0.002g, <15Hz.

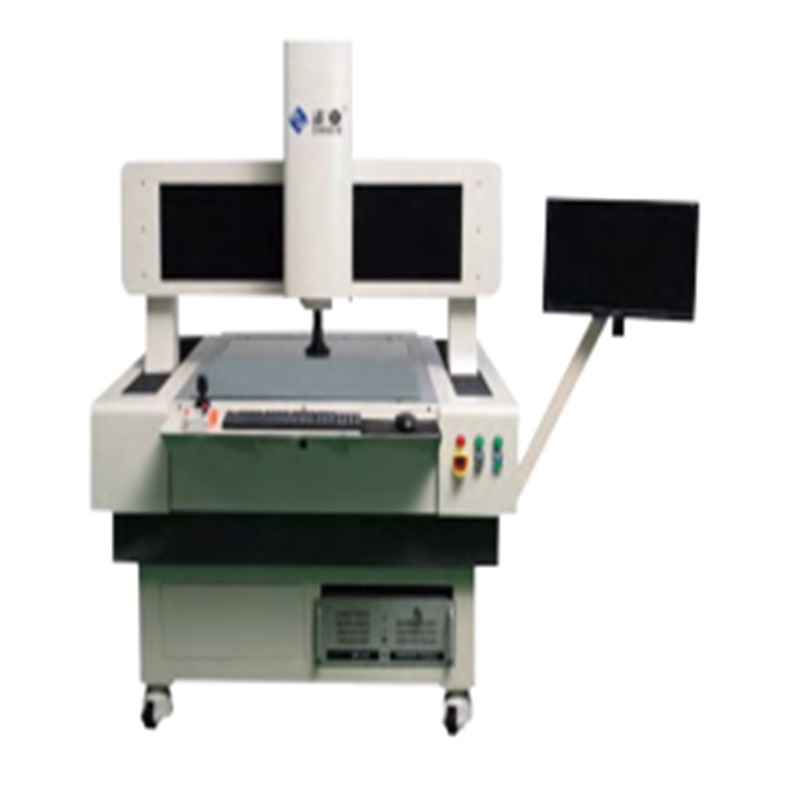

Remark                               1. Longmen Auto Video Measuring Instrument is designed for large size measurement, its maximum measuring

                                               range can reach 2500×2000mm, can customize different types according to practical measuring needs.

2. Can customize large platform tool microscope equipped with NIKON, OLYMPUS metallographic lens.
