PCB Metallographic Microscope (JX22/JX23-RT)
Five Advantages Of Products
- 1. Optimal optical path to ensure best imaging effects.
- 2. In house software can be customized to your required specification.
- 3. User friendly software, easy to achieve accurate measurement and analysis of length, area, radius, axis, angle and other related dimensions.
- 4. Ability to take still images, measure and store them simply.
- 5. Used for the measurement and analysis of small objects like IC components and microsections.
Product Details

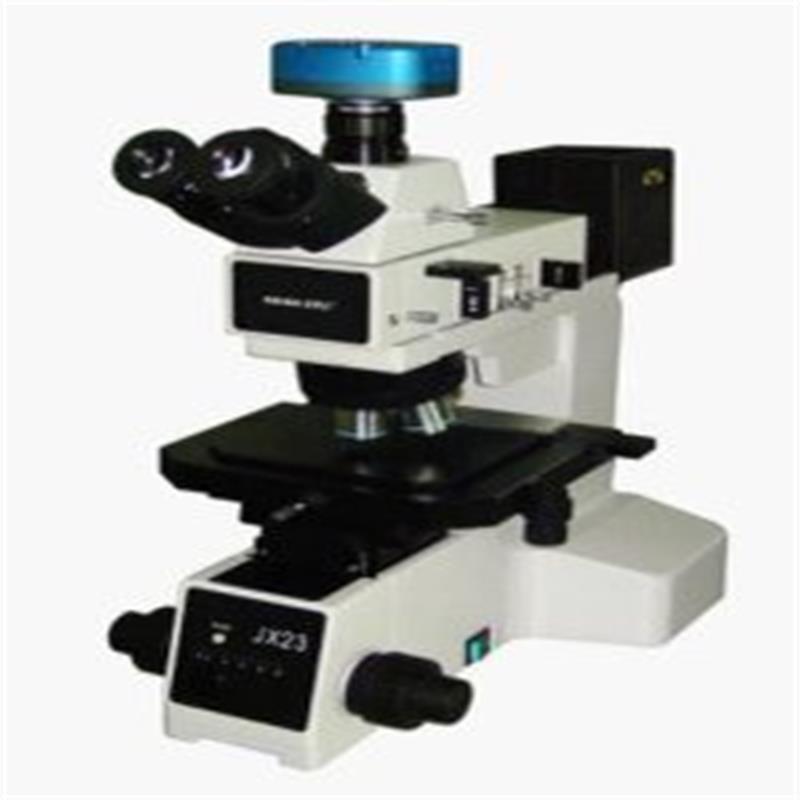

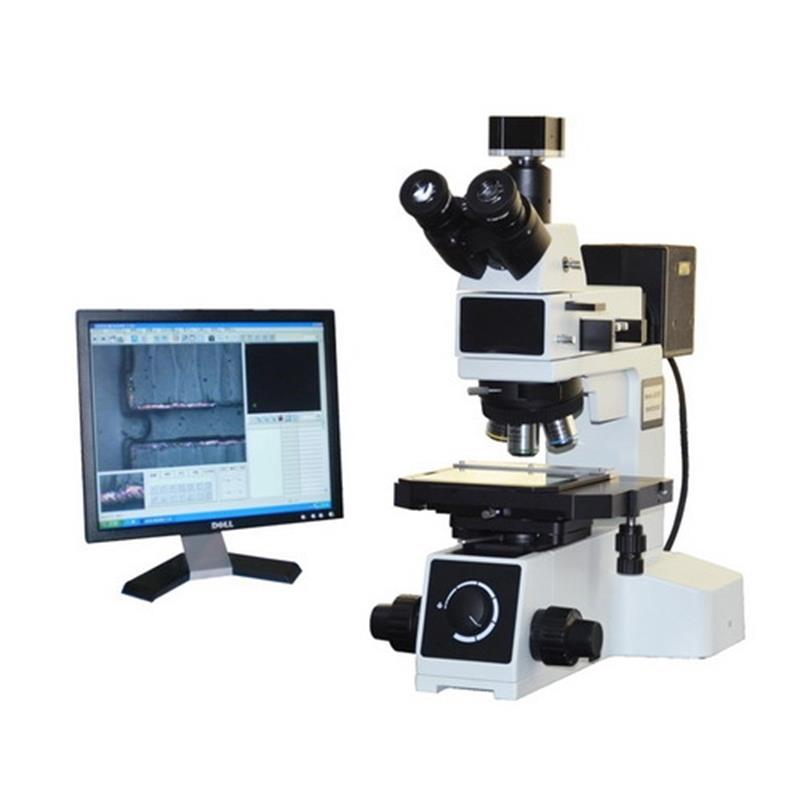

PCB Metallographic Microscope (JX22/JX23-RT)
USAGE
Used for the measurement and analysis of small objects like IC components and microsections.
CHARACTERISTICS
1. Optimal optical path to ensure best imaging effects.
2. In house software can be customized to your required specification.
3. User friendly software, easy to achieve accurate measurement and analysis of length, area, radius, axis, angle and other related dimensions.
4. Ability to take still images, measure and store them simply.
TECHNICAL PARAMETER
ITEM JX22 JX23-RT
Main Body Upright
Optical Magnification 50X~600X 50X~500X (1000X Optional)
Electronic Magnification 90X~1150X 90X~900X
Eye Lens (Wide View) 10X
Field Lens (Achromatic) 5X, 10X, 5X, 10X, 20X,
40X, 60X 50X (100X Optional)
Dark Field No Yes ( Can measure green oil)
Lighting System Drop lighting 6V20W, adjustable Drop lighting 6V100W, adjustable halogen
halogen brightness with effect from brightness with effect from polarizer.
polarizer.
CCD Model WD-300C, WD-300C2/TCC-2.0CL
CCD Camera 3,000,000 Megapixel
Accuracy ±0.0006mm
Special Feature Metal Grain Size Test
