PCB UV Laser Drilling Machine (JG23T/JG23M)
Five Advantages Of Products
- 1. Adopt advanced flying drilling technology to improve drill efficiency and quality.
- 2. Three software management levels to easier machine maintenance and management.
- 3. Strong function to daily record, all working procedure is saved.
- 4. Automatically running by RTR and PTP.
- -
Product Details

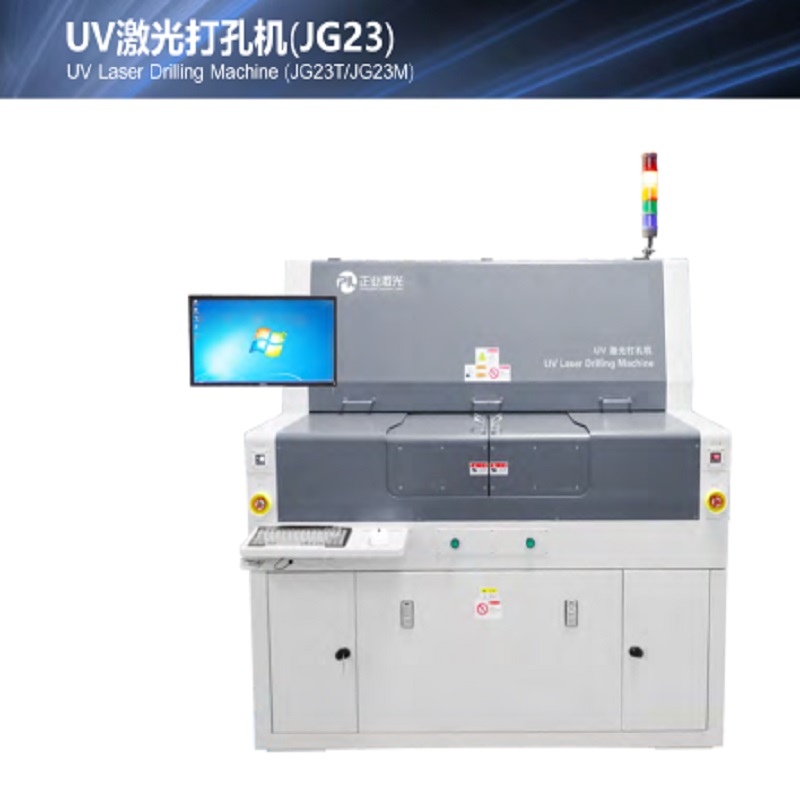

UV Laser Drilling Machine (JG23T/JG23M)
USAGE
Mainly used in the circuit board industry, double-sided copper foil for through-hole blind hole processing and HDI plate copper window processing.
CHARACTERISTICS
1. Adopt advanced flying drilling technology to improve drill efficiency and quality.
2. Three software management levels to easier machine maintenance and management.
3. Strong function to daily record, all working procedure is saved.
4. Automatically running by RTR and PTP.
TECHNICAL PARAMETER
ITEM Through hole processing Blind hole processing
System Processing Accuracy ±20μm
(ZHENGYE Conditions)
Laser power 11W@40kHz
Laser Wavelength 355nm
Pulse width 45ns~60ns@40kHz 90±30ns@40kHz
Frequency range 0-150kHz 40-90kHz
Energy control Energy Monitoring
Objects (1) Large processing size: 520mm×620mm
(2)Table number: Single beam, single platform
Dimensions(L×W×H) 1600mm×1650mm×1940mm
Weight 2300Kg
