PCB UV Laser Cutting Machine

(JG16/JG16C/JG18/JG15A)

USAGE

The machine is used in cutting, opening the window and uncovery for CVL/FPC/RF and thin multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon, etc.

CHARACTERISTICS

JG16/JG16C

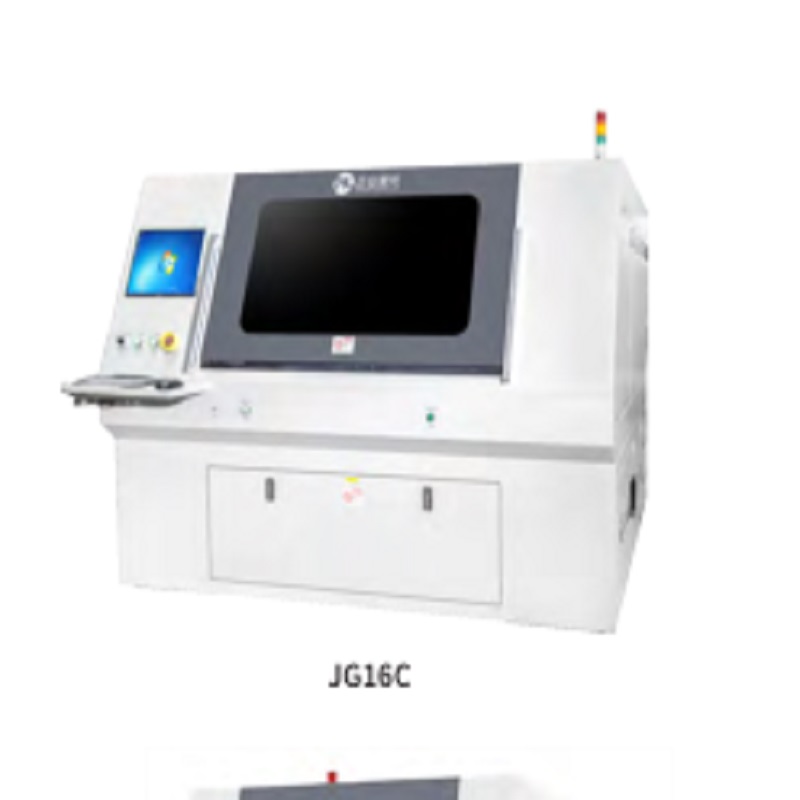

1. Two tables to cycle working one by one, no preparing time, high processing effiency

2. Preview function before processing to avoid damaging sample

3. Barcode marking function

JG18

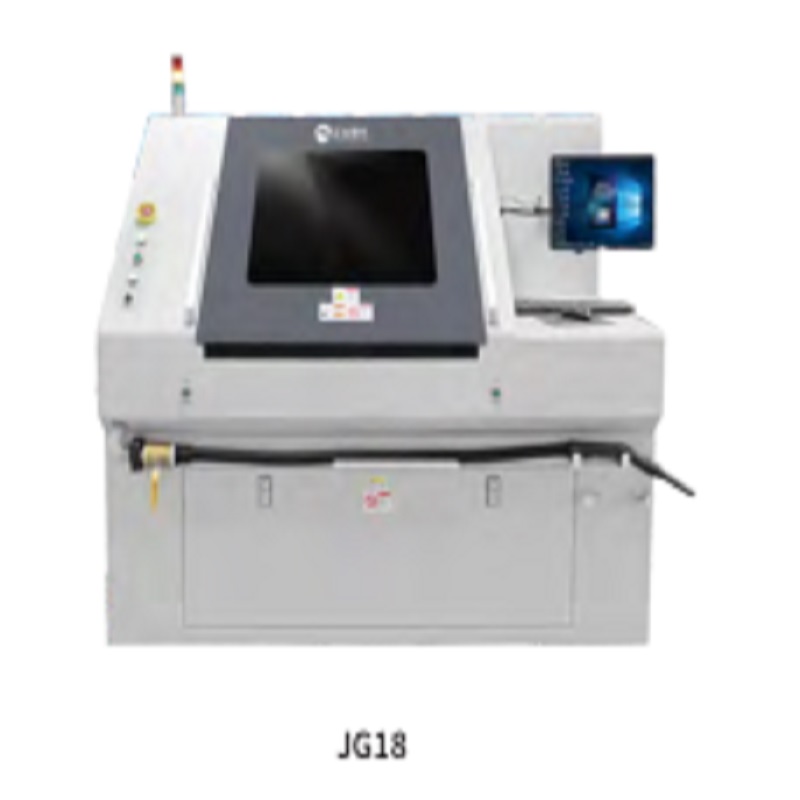

1. The largest table for Laser Cutting Machine in PCB industry

2. Preview function before processing to avoid damaging sample

3. Barcode marking function



TECHNICAL PARAMETER

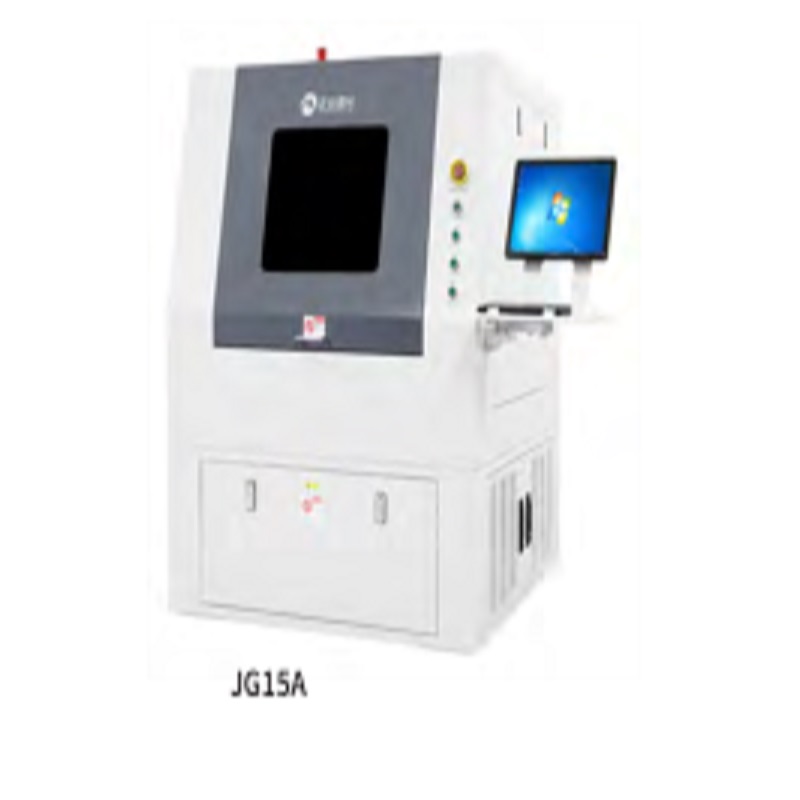

Item                              JG16                     JG16C                        JG18                    JG15A

Wavelength                                                               355nm

Laser Power                                           Standard 10W, Optional 15W

Laser Frequency                                                    30-120kHz

Maximum

Processing Size      500×400mm             650×550mm            720×540mm        520×420mm

                             Double platform        Double platform

Maximum

Operating Speed                                        800mm/s                                              500mm/s

Positioning

Accuracy of Table                                       ±3μm                                                     ±4μm

Repeat Positioning

Accuracy of Table                                       ±1μm                                                      ±2μm

Total Accuracy

ZHENGYE Conditions                                                ±20μm

Light Spots                                                               20±5μm

Scanning Range                                    45mm×45mm                                         40mm×40mm

File Format                                               *.gbr & *.dxf & *.lay

Electric Power                                                                                                   AC220V/1.5kW

Supply                                    AC220V/2kW; AC380V/5.5kW                             AC380V/1.5kW

Dimensions

(L×W×H)(mm)      1850×1640×1650            1780×1610×1650                  1780×1610×1650            1400×1300×1700

Weight                         2400Kg                3600Kg                       2500Kg                1500Kg

Environment Temperature                                       20°C±2°C

Environment Humidity                                 ≤60%RH, Non-condensing

Ground Amplitude                                                    ≦5μm

Ground Pressure                                                   1000kgf/m2
