PCB 2D Code Automatic Laser Marking Machine

Keywords :

PCB 2D Code Automatic Laser Marking Machine / PCB-0404 PCB-0707 / PCB-0909


  • Hits : 63
  • Company : WEHANS AUTOMATION TECHNOLOGY. CO., LTD
  • Telephone : +86 15062667823
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Imported CO2 laser, fiber laser, green laser, UV laser, stable performance.
  • Imported high speed glavo mirror, high processing precision and marking speed, stable performance.
  • Easy to use software interface, easy to lean.
  • Automatically obtain the work order, product batch number, material name encoding, specifications and other information and automatic marking.
  • Automatically read and save the 2D code data, record and alarm if not available.

Product Details

PCB 2D Code Automatic Laser Marking Machine

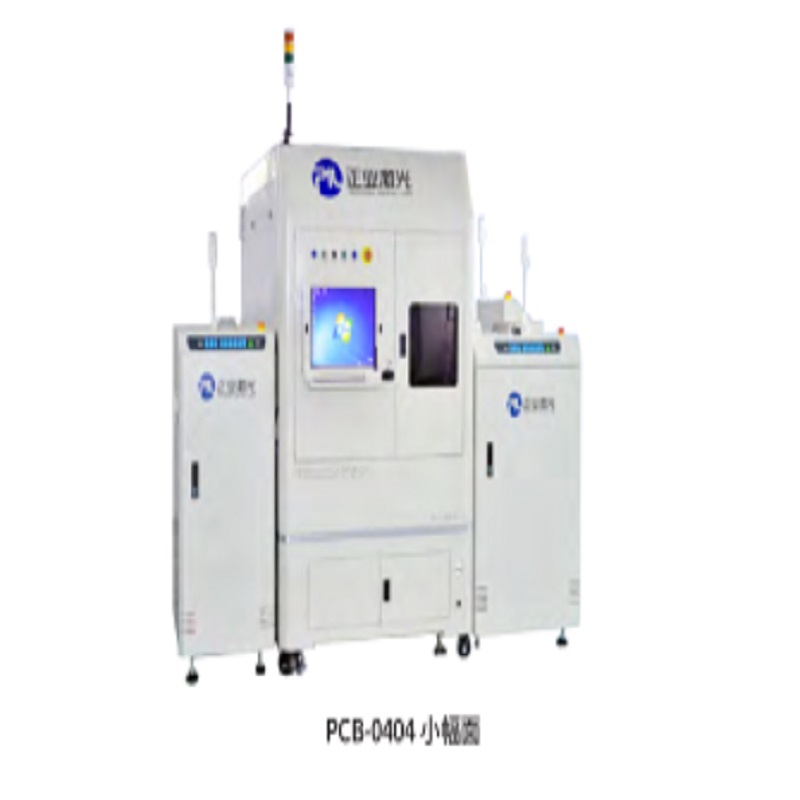

PCB-0404    Small Panel

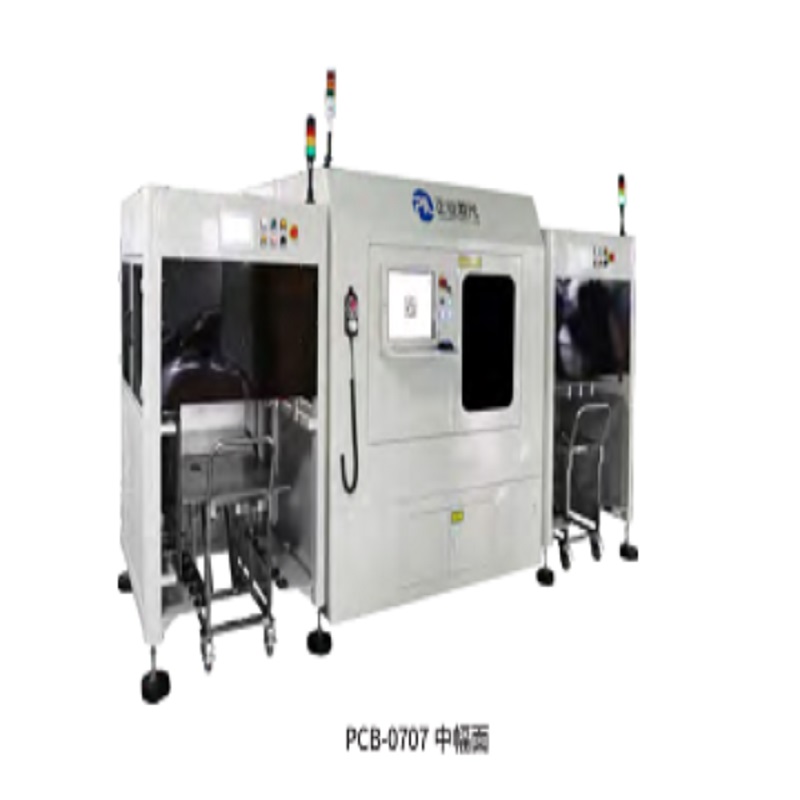

PCB-0707    Mid Panel

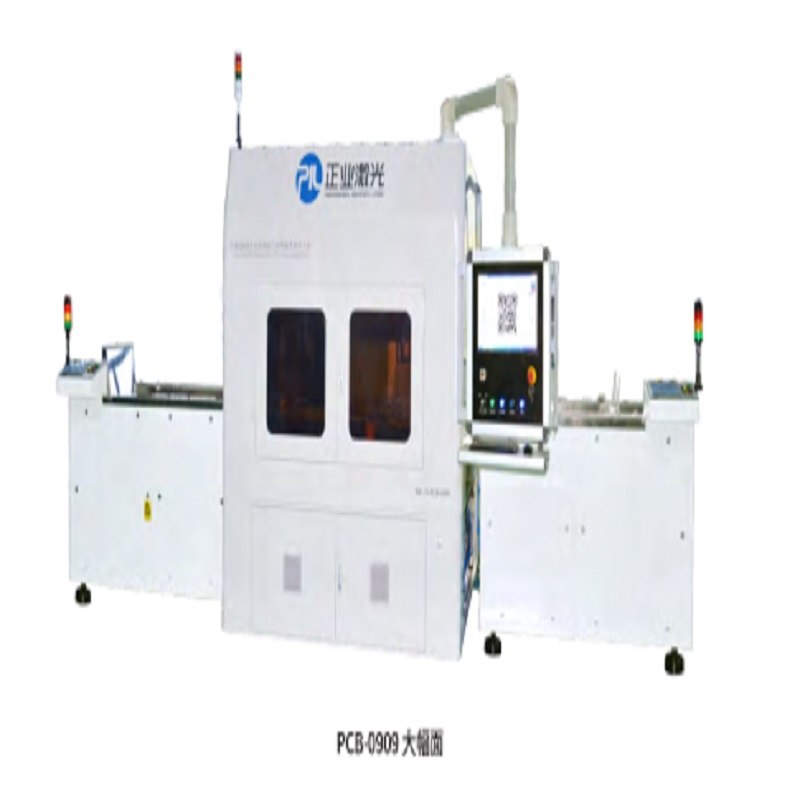

PCB-0909    Large Panel


USAGE

PCB 2D code automatic laser marking machine can be applied in PCB, FPC, SMT, etc. industries. It is mainly applied for automatic marking 2D code on PCB surface (Different machine model options depending on PCB size), available to mark on white oil, green oil, black oil and other inks and copper/stainless stell/aluminum alloy surface. It can automatically create a 2D code, which includes so much information, such as raw materials procurement, production process, batch, manufacturer, production date, customer name, etc. for product identification and traceability.

CHARACTERISTICS

Serial Number           PCB-0404          PCB-0707          PCB-0909

Small Panel          Mid Panel         Large Panel

            1     Imported CO2 laser, fiber laser, green laser, UV laser, stable performance.

2     Imported high speed glavo mirror, high processing precision and marking speed, stable performance.

3     Easy to use software interface, easy to lean.

4     Automatically obtain the work order, product batch number, material name encoding, specifications and other information and automatic marking.

5     Automatically read and save the 2D code data, record and alarm if not available.

6     Automatic loading/unloading machines can be customized.

7    Environmental friendly, less consumables, less pollution, free maintenance compared to ordinary jet printing way.





TECHNICAL PARAMETER

Item                                              Small Panel                           Mid Panel                            Large Panel

Model                                                0404                                     0707                                      0909

Laser Type                                              UV lasers, green laser, fiber laser, CO2 laser optional

Marking Range                                                     100mm×100mm(standard lens)

Marking Speed                                                     Line speed can reach 7000mm/s

Marking Position Accuracy                                                  ±0.1mm

Applicable PCB Size     Size is less than 400×400mm;    Size is less than 550×650mm;               Size is less than

                                       thickness 0.6mm-5mm                thickness 0.1mm-3.5mm             800mm×800mm;

                                       (can be customized)                    (can be customized)                    thickness 0.1mm-3.5mm

                                                                                                                                            (can be customized)

Application                    PCB white ink, green ink, blue ink. black ink and other inks; copper; stainless steel; aluminum alloy

                                     (depending on the type of laser)

1D Code                             Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN,etc.

2D Code Type                     Datamatrix, QR Code, micro OR Code, PDF417, Code 49, Code 16K,etc.

2D Code Size                      Minimum 2D code size 1.5mm×1.5mm (depends on the laser type)

Character Types                  Supports TrueType fonts, single font (JSF), SHX font, bitmap fonts (DMF)

Minimum Character             0.1mm~0. 4mm (depending on the laser type)

File Format                          DXF, Excel, TXT file format

Automatic Positioning          Supports automatic photo, 2, 3, 4 points localization way

Automatic Read Code          Read 2D code automatically and save data, alarm if can't read

Intelligent Production           Can be connected to ERP/MES system, automatic access to the order number, product batch

                                           number, material code, commodity information etc. and code automatically

Other Automatic                  Automatic loading/unloading machines can be customized
