PCB UV Laser Cutting Machine (JG15C)

Keywords :

UV Laser Cutting Machine / JG15C / PCB


  • Hits : 32
  • Company : WEHANS AUTOMATION TECHNOLOGY. CO., LTD
  • Telephone : +86 15062667823
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Good Effect: Smooth and neat cutting surface, no burr, slight carbonation.
  • Automation: The processing of software plate is installed on the fixture, which flows through the flow platform, automatically clamps and automatically locates the processing, without manual feeding. After processing, automatic outflow.
  • Mainly used in the circuit board industry, SMT sub-plate processing.
  • Mainly used in the circuit board industry, SMT sub-plate processing.
  • Mainly used in the circuit board industry, SMT sub-plate processing.

Product Details

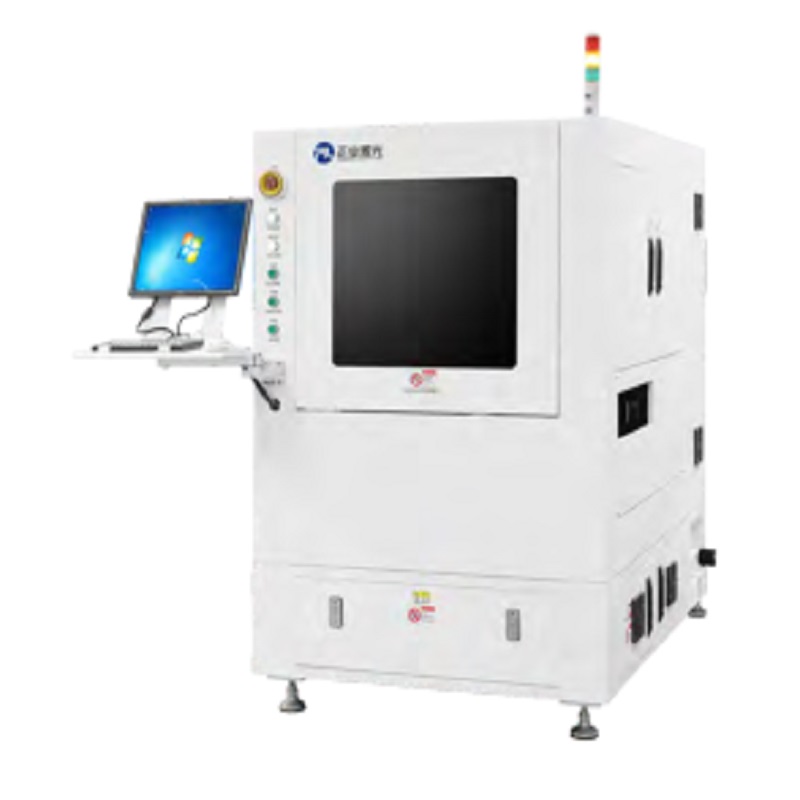

PCB UV Laser Cutting Machine (JG15C)

USAGE

Mainly used in the circuit board industry, SMT sub-plate processing.



CHARACTERISTICS

1. Good Effect: Smooth and neat cutting surface, no burr, slight carbonation;

2. Automation: The processing of software plate is installed on the fixture, which flows through the flow platform, automatically clamps and automatically locates the processing, without manual feeding. After processing, automatic outflow.



TECHNICAL PARAMETER

Item                                                                      JG15C

Laser Wavelength                                                 355nm

Laser Power                                                    Standard 15W

Laser Frequency                                                40-120kHz

Maximum Processing Width                            200mm×270mm

Total Accuracy

ZHENGYE Conditions                                         ±50μm

Laser Scanning Range                                        40×40mm

Processing Documents                                  .Gbr & .dxf & .lay

Dimensions(L×W×H)                                 1100×1570×1700mm

Power Source and Power                      Host AC220V 50~60Hz/1.5kW

                                                     Vacuum cleaner AC220V 50~60Hz/1.5kW

Weight                                                                 1500Kg
