Five Advantages Of Products

  • 1. Precision: Adopting high-precision Probes, high frequency coaxial switch, and time-domain reflection, synchronous high-resolution sampling and multi-point calibration techniques.
  • 2. Efficient: Test procedure integrated, multi-tasking one-button operation.
  • 3. Specialties: Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.
  • Precision: Adopting high-precision Probes, high frequency coaxial switch, and time-domain reflection, synchronous high-resolution sampling and multi-point calibration techniques.
  • Precision: Adopting high-precision Probes, high frequency coaxial switch, and time-domain reflection, synchronous high-resolution sampling and multi-point calibration techniques.

Product Details

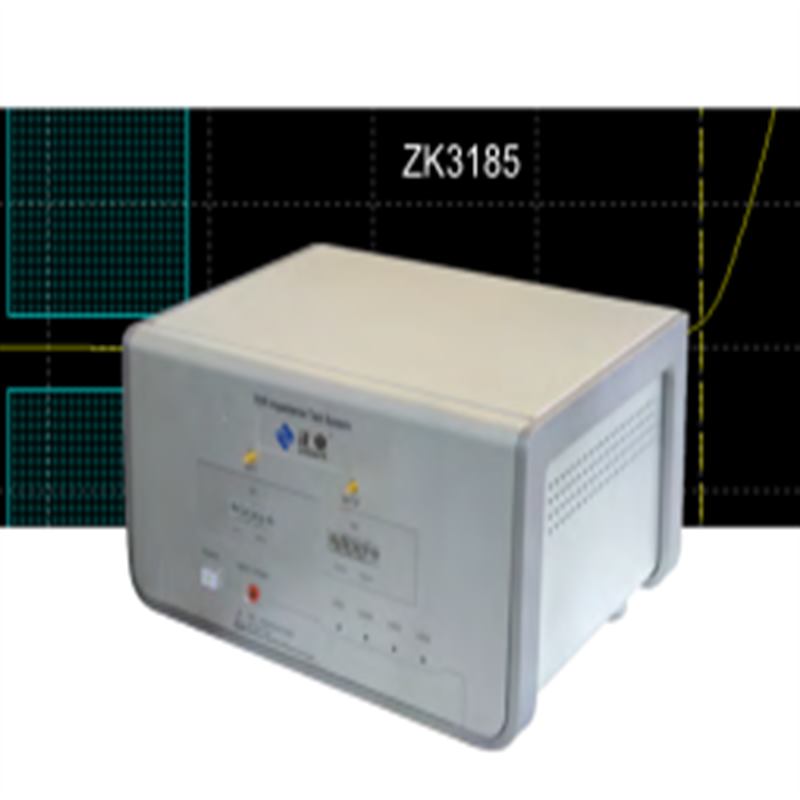

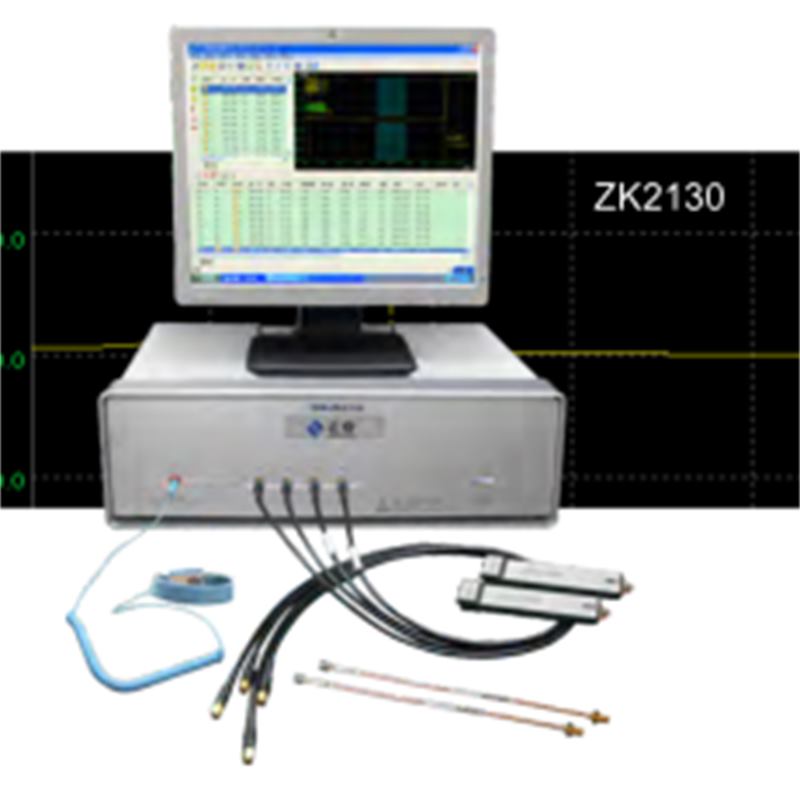

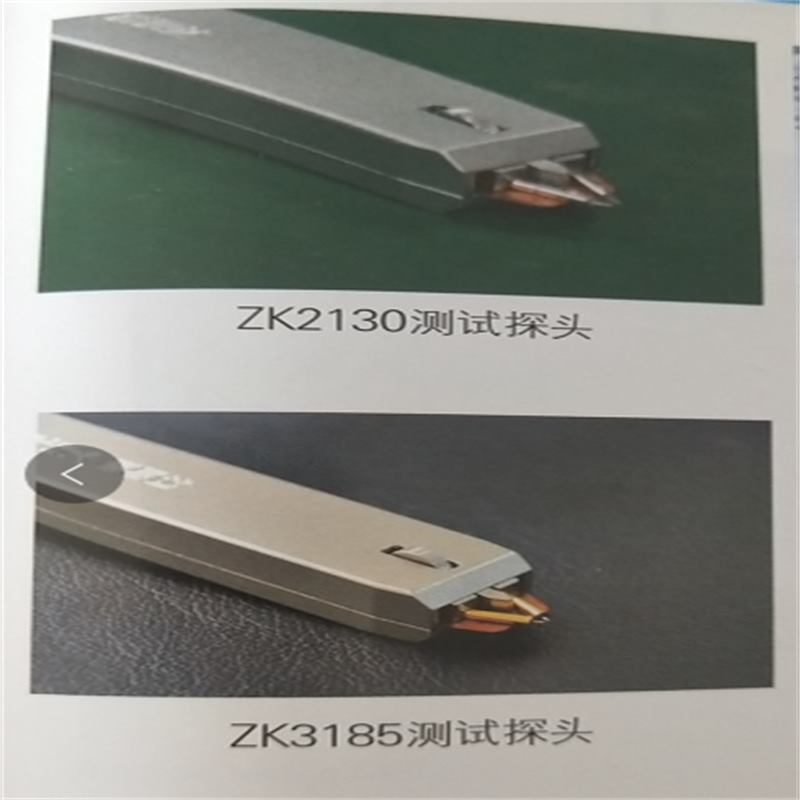

PCB TDR Impedance Test Instrument (ZK2130/ZK3185)



USAGE

The instrument is used in testing impedance and S parameters of high frequency circuit boards which provides a fast, accurate standard and economic solution for PCB Manufacturers. It is also applicable for impedance testing of wire and cable.



CHARACTERISTICS

1. Precision: Adopting high-precision Probes, high frequency coaxial switch, and time-domain reflection, synchronous high-resolution sampling and multi-point calibration techniques.

2. Efficient: Test procedure integrated, multi-tasking one-button operation.

3. Specialties: Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.

TECHNICAL PARAMETER

ITEM                                                 ZK2130                  ZK3185

Measuring Accuracy                                       ±1% (50Ω)

Detection Rate                                                ≦1S/point

Objects    Controlled Impedance

                Measurement Range         20Ω~150Ω               20Ω~200Ω

                Measuring Range              0.05m~2m                0.02m~2m

Wave Bandwidth                                 3GHz                   0.1GH~8.5GH

Loss Test                                                /                      S Parameter Measurement

Dynamic Range                                       /                      Real Performance of Measurable Tested Article: >100dB
