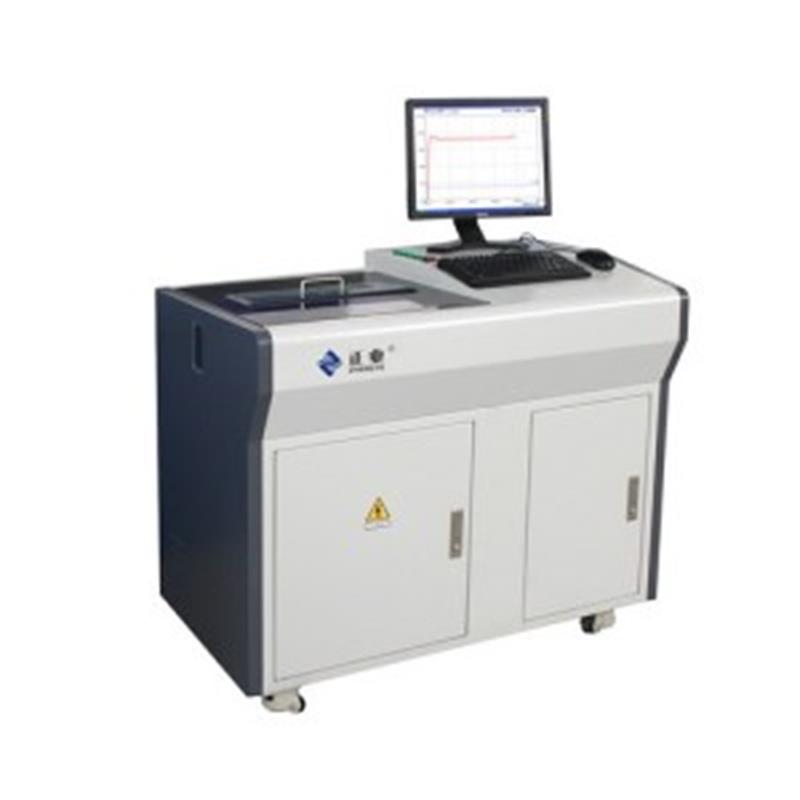

PCB Ionic Contamination Tester (LZ22/LZ22A)

USAGE

The instrument is suitable for the test of ion pollution degree of PCB optical plates before and after cleaning, coating and other processes. It can test the ion pollution degree of PCBA circuit boards with electronic components.

CHARACTERISTICS

1. Precise: Adopting online high-precision conductivity meter, fully enclosed circulatory system, mixed anion and cation exchange resins, as well as real-time processing algorithms and temperature compensation technology.

2. Efficient: Adopting heat extraction and high-speed loop flushing technology.

3. Characteristic: Unique dynamic/static test mode. The national torch project, with the invention patent, has been produced for more than 10 years, and the market share is more than 60%.

4. Customize: Volume can be customized according to the requirements.

TECHNICAL PARAMETER

ITEM                                                         SPECIFICATION

MODEL                                              LZ22                                   LZ22A

Testing Method                                        Dynamic/Static Testing

Volume of Water Tank

(L×W×H)                                 352×70×600mm 15L         680×65×680mm 30L

Testing Size                               10×20cm~35×60cm          10×40cm~68×68cm

Testing Accuracy                                                    ±5%

Resolution of Conductivity                                 0.001μs/cm

Electrode Resolution Range       0.0001μs/cm2~20μs/cm2 (NACL: 300-100,000μg)

Measuring Plate Area                      800-4200cm2                    1200-8712cm2

Proportion of Extract                                         0.85~0.855

Reference                                                          66/100MΩ

Appearance Dimension                1050×600×920mm             1401×600×1000mm

(L×W×H)

Weight                                                 ≈115kg                               ≈180kg
