On-line PCB Thickness Inspector (BH11)

Keywords :

On-line PCB Thickness Inspector / BH11 / Measurement & Analysis Instrument


  • Hits : 57
  • Company : WEHANS AUTOMATION TECHNOLOGY. CO., LTD
  • Telephone : +86 15062667823
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • 1. High quality: on-line detection can reduce the output of defective products, and non-contact laser measurement is adopted without destructive effect;
  • 2. High efficiency: the measurement efficiency is 6-8s/PC;
  • 3. Accurate data: the test accuracy is as high as ±5μm;
  • 4. Thickness of test plate: 0-12mm, wide range of thickness of applicable plate;
  • 5. Customized contact thickness measuring machine for green oil PCB.

Product Details

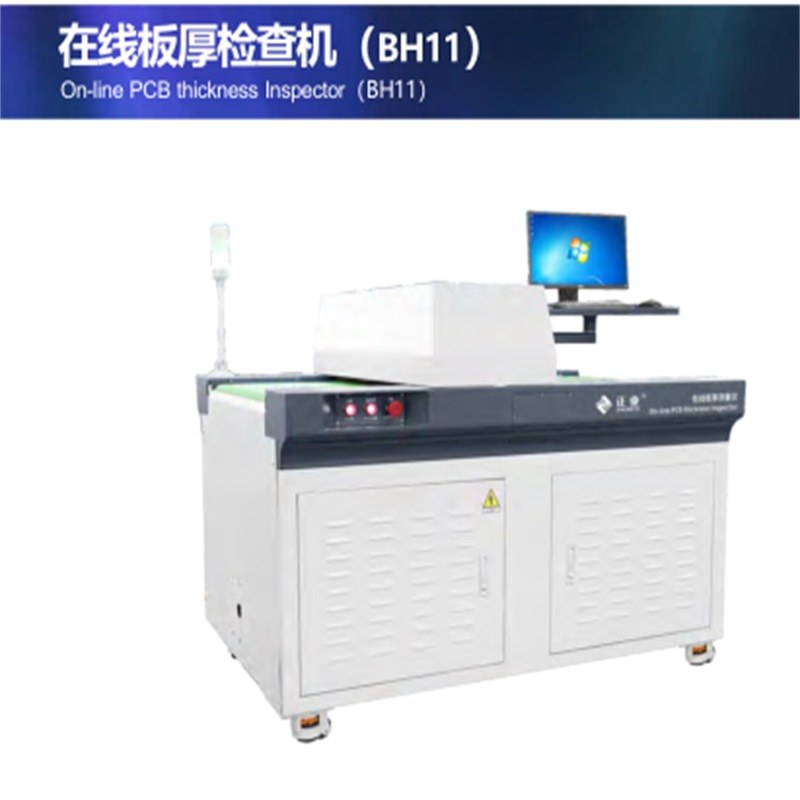

On-line PCB Thickness Inspector (BH11)



USAGE

The on-line plate thickness inspection machine is applied to PCB/PCBA, automobile, machining and other industries. It adopts non-contact laser measurement. It can accurately measure the thickness of the PCB pressing board, plastics and films.


CHARACTERISTICS

1. High quality: on-line detection can reduce the output of defective products, and non-contact laser measurement is adopted without destructive effect;

2. High efficiency: the measurement efficiency is 6-8s/PC;

3. Accurate data: the test accuracy is as high as ±5μm;

4. Thickness of test plate: 0-12mm, wide range of thickness of applicable plate;

5. Customized contact thickness measuring machine for green oil PCB.



TECHNICAL PARAMETER

ITEM                                                                      SPECIFICATIONS

Measuring Type                                                  Non-Contact Measurement

Test Point                                                     1. Self-selection

                                                                    2. Software to determine, average of 5 test points or 9 test points.

Plate Thickness Measurement Range                               0-12mm

Accuracy of the Test                                              ±5μm (Standard piece)

                                                                    0-20μm (Compared with the micrometer, PCB warping degree<0.8mm)

Test Plate Size Range                                       250mm×250mm-650mm×620mm

Test Efficiency                                                                 6-8S/pc

Test Point Positioning Accuracy                                        ±3mm

Sensor Model                                                        LK-coriolis (keyence)

Sensor Resolution                                                            0.025μm

Sensor Laser Diameter                                            Φ50μm (The laser)

Platform Speed                                                        6m/min, 12m/min

Data Statistics                                                                     yes

Collecting Plate Function                                                 Optional

Working Environment Temperature                                   22±3°C

Power Requirement                                                 AC220V 50Hz

Air Supply                                                                 0.6-0.8Mpa

Power                                                                              2kW

Weight                                                                           500KG

Appearance Dimension (L×W×H)                 1536×1245×1420mm (Platform 900mm)




WEHANS AUTOMATION TECHNOLOGY. CO., LTD

Contact Person: Cynthia

Telephone: +86 15062667823

Landline: +86 18121053868

Company Address: Building 1, No. 268, Dengyun Road, Yushan Town, Kunshan City, JIangsu Province, China.

Website: www.wehans-tech.com
