PCB On-line Copper Thickness Checker (TH11)

Keywords :

On-line Copper Thickness Checker / TH11 / PCB


  • Hits : 410
  • Company : WEHANS AUTOMATION TECHNOLOGY. CO., LTD
  • Telephone : +86 15062667823
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • 1. Connect the production line: monitor MES docking online and prevent the production of defective products;
  • 2. Accurate data: improve test efficiency and reduce human recording and test error;
  • 3. Original positioning method: patented design, double-sided measurement;
  • 4. Stable performance: equipped with fischer PC2 host and ERCU N copper probe;
  • 5. Thickness of test plate: 0.050-12mm, wide range of thickness of applicable plate.

Product Details

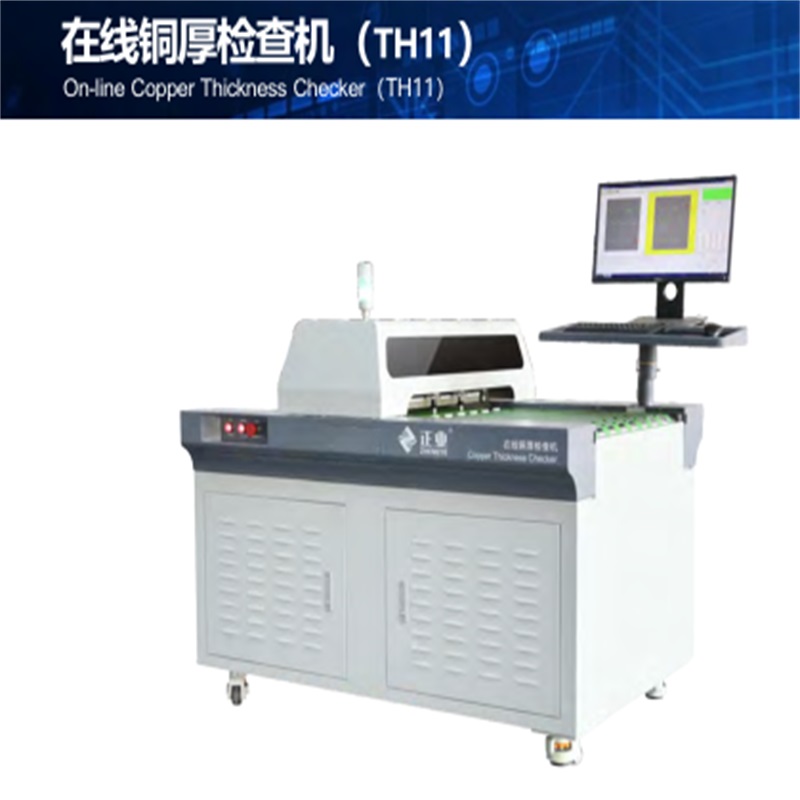

PCB On-line Copper Thickness Checker (TH11)



USAGE

The on-line copper thickness inspection machine is suitable for the measurement of the copper thickness on the surface of hard board, single layer and multi-layer circuit board.

CHARACTERISTICS

1. Connect the production line: monitor MES docking online and prevent the production of defective products;

2. Accurate data: improve test efficiency and reduce human recording and test error;

3. Original positioning method: patented design, double-sided measurement;

4. Stable performance: equipped with fischer PC2 host and ERCU N copper probe;

5. Thickness of test plate: 0.050-12mm, wide range of thickness of applicable plate;

6. Automation: it can support three automatic loading and unloading system to reduce cost and improve efficiency;

7. Test points are easy confirmed by input file (file type available: Gerber or DRL).



TECHNICAL PARAMETER

ITEM                                                                      SPECIFICATIONS

Measuring Plate Area                                   200mm×220mm - 650mm×620mm

Test Plate Thickness                                                   0.05mm-12mm

Copper Thickness Test Range                                      0.1-120μm

Copper Thickness Test Area Size                               >10mm×15mm

Testing Accuracy                                                               ±5%

Copper Thickness Test Controller                       FISHER (MMS PC2 BU)

Copper Thickness Test Probe                             FISHER (PROBE ERCU N)

Test Efficiency                                          6 point: 6-9S/pc, 18 point: 10-13S/pc

Test Point Positioning Accuracy                                        ±3mm

Test Point                                         1. input file (type Dir) and find the test points

2. input file (type Gerber) and find the test points

3. Average of 5 test points or 9 test points which

can be set by software

Platform Speed                                                      6m/min, 12m/min

Data Statistics                                                                     yes

Collecting Plate Function                                                  Optional

Working Environment Temperature                                    22±3°C

Power Requirement                                                   AC220V 50Hz

Air Supply                                                                   0.6-0.8Mpa

Power                                                                             2kW

Weight                                                                           500KG

Appearance Dimension (L×W×H)                 1536×1245×1420mm (Platform 900mm)
