Five Advantages Of Products

  • Precise: Adopting high-precision CIS scanning system, automatic positioning, image processing and detection technologies.
  • Efficient: When equipped with Multichannel sorting device and small plate parts, multi-channel simultaneous detection is supported.
  • The standard machine can detect both plates at the same time: 3 and 6 channels can be customized at the same time.
  • Characteristics: With network maintenance function, it can use several terminals to view NG board defect information synchronously, and to overhaul the NG board rapidly.
  • Characteristics: With network maintenance function, it can use several terminals to view NG board defect information synchronously, and to overhaul the NG board rapidly.

Product Details

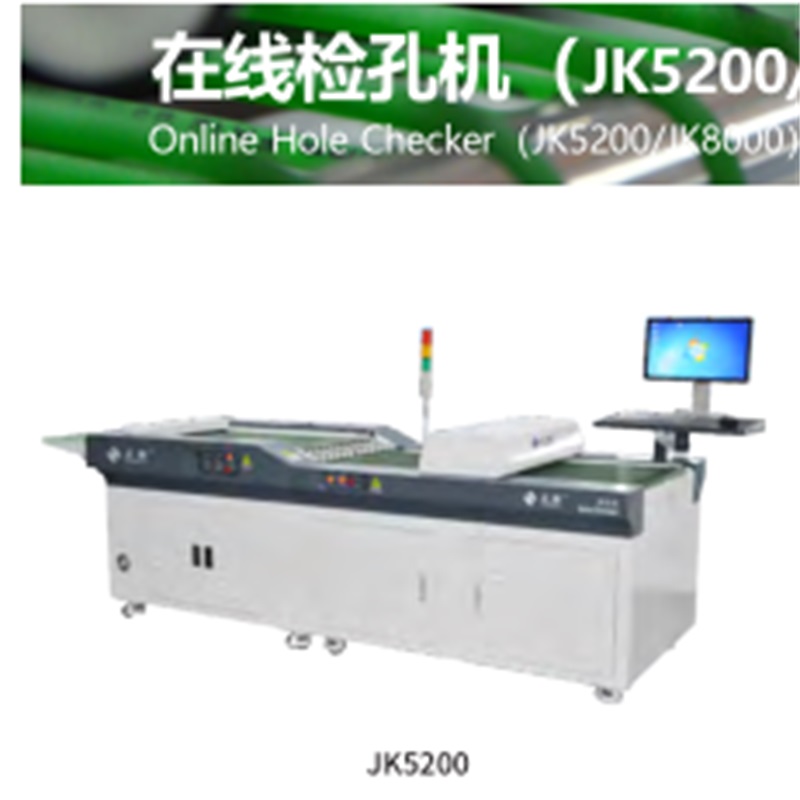

PCB Online Hole Checker (JK5200/JK8000)



USAGE

Hole checker machine is mainly used for drilling quality inspection and analysis of PCB drilling board and finished product board.

The defects such as the lack of holes (leaky drill and plug holes), multihole, internal burrs, big holes, small holes, the length, width, angle and other irregular shaped holes of the PCB drilling board and finished board are automatically detected, and the equipment for classification of NG/OK is automatically determined.

CHARACTERISTICS

1. Precise: Adopting high-precision CIS scanning system, automatic positioning, image processing and detection technologies.

2. Efficient: When equipped with Multichannel sorting device and small plate parts, multi-channel simultaneous detection is supported; the standard machine can detect both plates at the same time: 3 and 6 channels can be customized at the same time.

3. Characteristics: With network maintenance function, it can use several terminals to view NG board defect information synchronously, and to overhaul the NG board rapidly.



TECHNICAL PARAMETER

ITEM                                                 JK5200                                                        JK8000

Dim  Length               Scanning Machine+Sorting Device:3510mm              Scanning Machine:1550mm

                                       No Sorting Machine: 1530mm

Width                                               1160mm                                                         1280mm

Height                                               1050mm                                                         1520mm

CIS                                                                            Contact Image Sensor

Light                                                                       Bar Red LED Light Source

Maximum Diameter Ratio                                                      25:1

Measurable Thickness                    0.3mm~10.0mm, plates with thickness less than 0.3mm shall be submitted for sample

                                                      confirmation.

Plate Size                                   Width: 80~650mm                                             Width: 80~800mm

         Length: 100~650mm                                          Length: 100~800mm

Pore Size Range                                                       Φ0.10mm~Φ10mm

Min Margin of

Punching Hole                                                                     0.1mm

The Maximum Number of

Holes in the Tested Plate           500,000 (round hole)                                          800,000 (round hole)

Measuring Speed                           (The four gears of the measured velocity scanning part were available): 3.0±0.5m/min,

                                                      6.5±0.6m/min, 10±0.8m/min, 12.5±0.8m/min. The drill plate is up to 6.5m/min.

Repeat Precision                                                                  ±30μm

(round hole)

Repeat Precision                                          Slots: ±75μm; Irregular Holes: 150μm

(non-circular hole)

Aperture Accuracy                                                 ±20μm (aperture≤1mm)

 (round hole)                                                         ±30μm (4mm>aperture>1mm)

                                                                             ±40μm (aperture≧4mm)

The Content of Detection                   Missing Hole (leaky holes, plug holes), holes (multi-drilling, bisecting), foreign body

                                                        inside the holes, large holes, small holes; the length, width, burr of “one” type hole and

                                                        other defects of irregular holes, plate length, width and size, etc.

Inspection Line Number                      Standard machine: single line, 2 lines; (above 3 lines, please separately inquire)

Computer                                                   Electric brain industrial computer, CPU: i5 series;

              Memory: 8G; Hard disk: 1T; Operating system: windows7×64

Power                                                         Power scanning and sorting device: 2kW;

      No sorting device: 12kW

Operating Environment                                          Temperature: 20°C-40°C

                                                                             Humidity: 40%-70%

           There is no acid base gas in the environment.

     Production board requirements: dry, no acid/alkaline

     liquid (to prevent equipment corrosion)

        The device requires an Internet connection for remote diagnosis.

Requirements for the board to be tested: the warping degree of the board to be tested shall not exceed 0. 75% of the IPC diagonal line. After being washed with high pressure and dried, the test results will be affected if the board surface is not clean.
