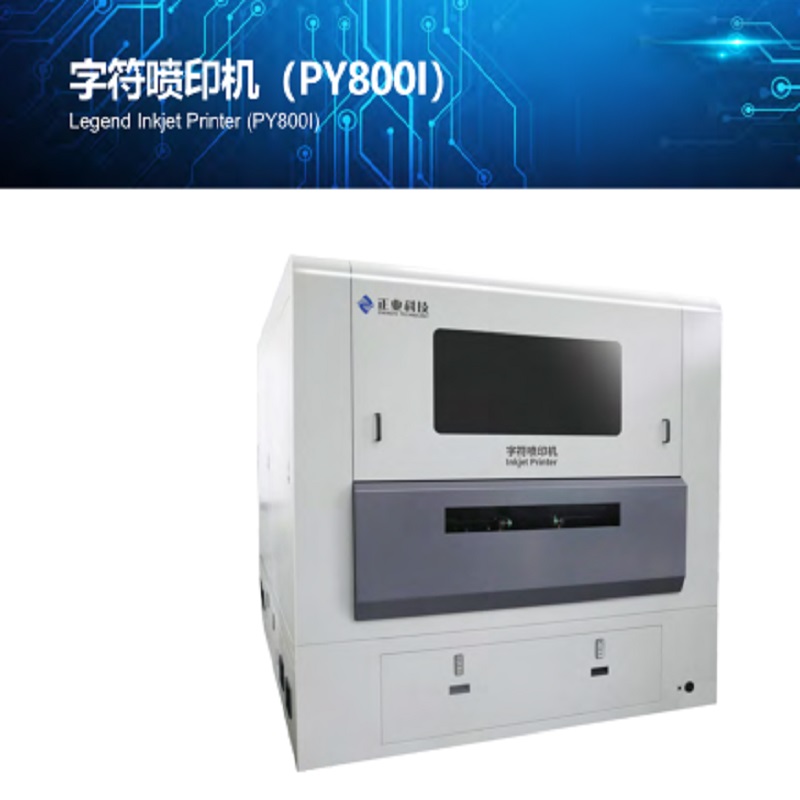

Legend Inkjet Printer (PY800I)

USAGE

The equipment is used in processing of character line printing on PCB, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.

CHARACTERISTICS

1. High precision: Adopt special precision linear motion guide modules, high precision control and multi-point positioning and compensation technology.

2. High-quality: High definition printing characters, high quality printing block, strong adhesion.

3. High efficiency: Using high-performance UV ink pre-curing systems, nine print-head print technology allows a substantial increase in production efficiency.

4. User-friendly: Printing software is easy to operate, simple and easy to learn.

5. Customized: The hardware and software are self-developed in order to master core technologies and customize personalized solutions for customers.

TECHNICAL PARAMETER

ITEM                                                                             PY800I

Accuracy                                                       Positioning Accuracy: ±38μm

                                                                     Repeat Accuracy: ±5μm

Quality                                                          Resolution: 720/1080/1440dpi

                                                                     Minimum Line Width: 75~100μm

                                                                     Minimum Character Height: 0.5mm

Speed                                                           Sizes: 720×620mm/28ʹʹ×24ʹʹ

                                                                     Mass production: 10 Seconds/Side

                                                                     Fine resolution: 13 Seconds/Side

  Note: Include loading and unloading time; the number of print-header: 1024i*9.

Objects                                                         Plate Size: 730mm×621mm(28ʹʹ×24ʹʹ)

                                                                     Plate Thickness: 0.1mm~6mm(4~236mil)

Dimensions (L×W×H)                                        L2600×W2100×H2200mm

Weight                                                                              5000Kg

Automatic loading                                       Automated assembly line solution

and unloading                                              (two machine connections print front and back separately)
