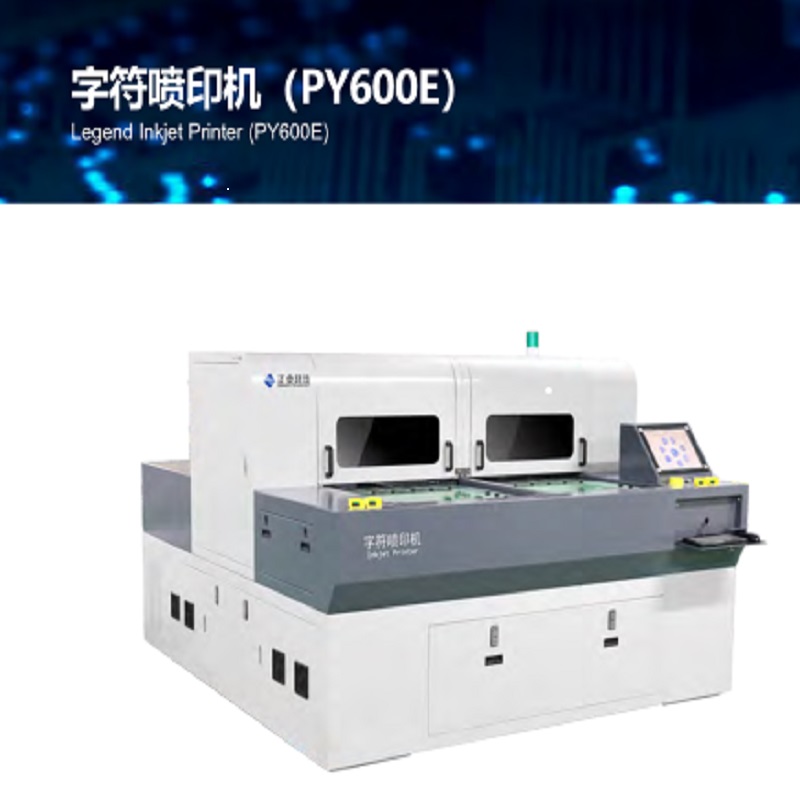

Legend Inkjet Printer (PY600E)

USAGE

The equipment is used in processing of character printing on PCB/FPC, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB/FPC manufacturers.

CHARACTERISTICS

1. High precision: Adopt special precision linear motion guide modules, high precision control, and multi-point positioning and compensation technology.

2. High-quality: High definition printing characters, high quality printing block, strong adhesion.

3. High efficiency: Using high-performance UV ink pre-curing systems, four print-head print technology allows a substantial increase in production efficiency.

4. User-friendly: Printing platform options for different print media, printing software is easy to operate, simple and easy to learn.

5. Customized: The hardware and software are self-developed in order to master core technologies and customize personalized solutions for customers.

TECHNICAL PARAMETER

ITEM                                                                           PY600E

Accuracy                                                      Positioning Accuracy: ±38μm

                                                                    Repeat Accuracy: ±5μm

Quality                                                        Resolution: 720/1080/1440dpi

                                                                    Minimum Line Width: 75~100μm

                                                                    Minimum Character Height: 0.5mm

Speed                                                          Sizes: 720×620mm/28ʹʹ×24ʹʹ

                                                                    Mass production: 15 Seconds/Side

                                                                    Fine resolution: 20 Seconds/Side

                                                                     Note: Include loading and unloading time of 4 seconds;

                                                                               the number of print-header: 1024i*5.

Objects                                                       Plate Size: 730mm×621mm(28ʹʹ×24ʹʹ)

                                                                   Plate Thickness: 0.1mm~6mm(4~236mil)

Dimensions (L×W×H)                                      L2670×W2400×H1790mm

Weight                                                                            4300Kg

Automatic loading                                    Solution One: Automated assembly line solution

and unloading                                  (two machine connections print front and back separately)

                                                      Solution Two: Robot Arm Type (Can Automatic Turning Plate)
