Legend Inkjet Printer

USAGE

The equipment is used in processing of character printing on PCB/FPC/IC/LED, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.

CHARACTERISTICS

1. High precision: Adopt special precision motion guide modules, servo control, and multi-point positioning and compensation technology.

2. High-quality: High definition printing characters, high quality printing block, strong adhesion.

3. High efficiency: Using high-performance UV ink pre-curing systems, four print-head print technology allows a substantial increase in production efficiency.

4. User-friendly: Printing platform options for different print media, printing software is easy to operate, simple and easy to learn.

5. Customized: The hardware and software are self-developed in order to master core technologies and customize personalized solutions for customers.

TECHNICAL PARAMETER

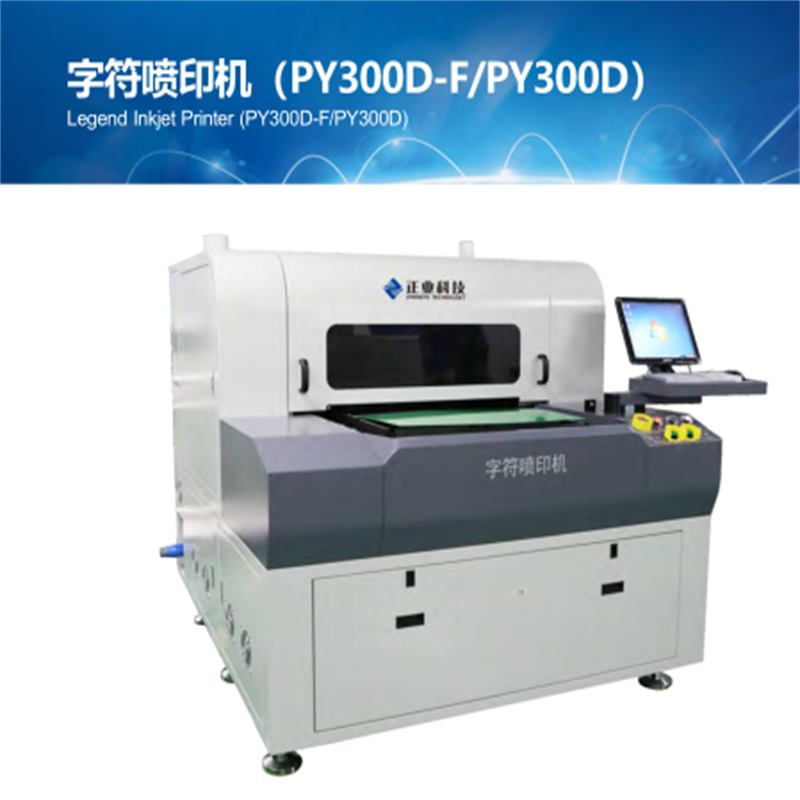

ITEM                              PY300D-F                                      PY300D

Accuracy                        Positioning Accuracy: ±38μm

                                      Repeat Accuracy: ±5μm

Quality                          Resolution: 720×360dpi~1440×1440dpi

                                      Minimum Line Width: 75~100μm

                                      Minimum Character Height: 0.5mm

Speed                    Sizes: 400×250mm/16ʹʹ×10ʹʹ           Sizes: 610×560mm/24ʹʹ×22ʹʹ

                              Mass production: 260sides/h            Mass production: 150sides/h

                              Fine resolution: 220sides/h                Fine resolution: 120sides/h

        Note: The printing speed calculation dose not include loading and unloading time; the number of  print-header: 1024i*4.

Objects                           Plate Size: 730mm×621mm(28ʹʹ×24ʹʹ)

                                       Plate Thickness: 0.1mm~6mm(4~236mil)

Dimensions                      2050mm×1650mm×1650mm

(L×W×H)

Weight                                       1450Kg

Automatic loading               Solution One: Robot Arm Type ( Can Automatic Turning Plate)

and unloading                      Solution Two: Stacker Type (Can’t Automatic Turning Plate)
