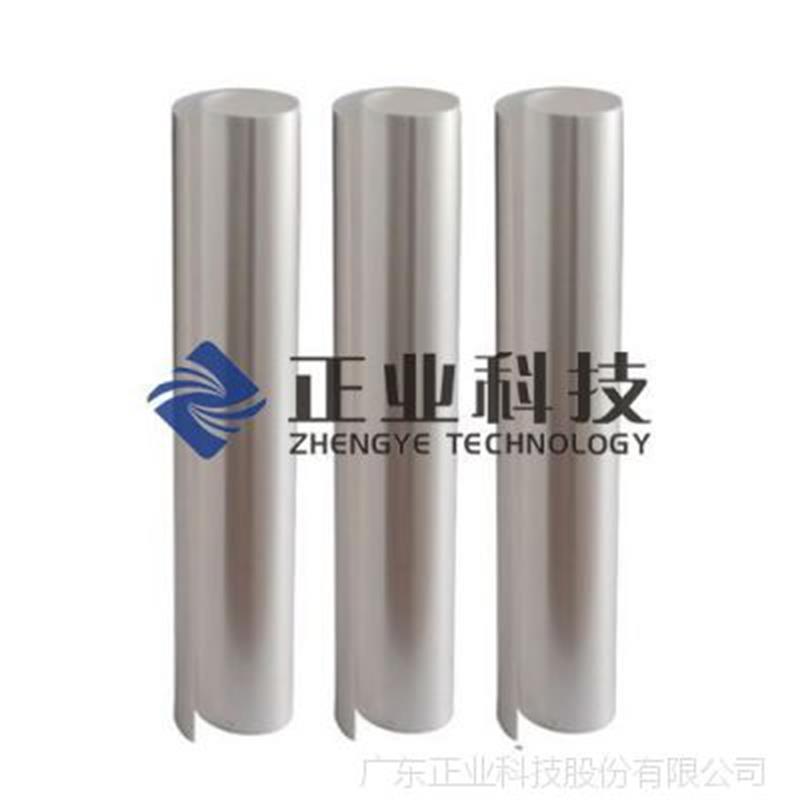

Protective Film of Diazo Film

USAGE

Prevent the scratches from yellow film and black film, protect film from by artificially.

CHARACTERISTICS

Excellent transmittance, anti-static, good bonding effect, no residual film when tearing the film.

SPECIFICATION

ITEM           Width (in)            Length (m)

1#                     18                   150

2#                     20                   150

3#                     22                   150

4#                     24                   150

QUALIFICATION

Specification             18"×150m    20"×150m     20.5"×150m      21"×150m     22"×150m     24"×150m

180° Peel Strength                                          205~225gf/25mm

Total Light

Transmittance                                                        98.2%

Parallel Light

Transmittance                                                        89.7%

UV Transmittance

( λ=365nm)                                                      88.59%

UV Transmittance

( λ=450nm)                                                      90.35%

Mist Finish                                                             5.2%

Note: Above data are typical values only for reference, not for technical guarantee.
