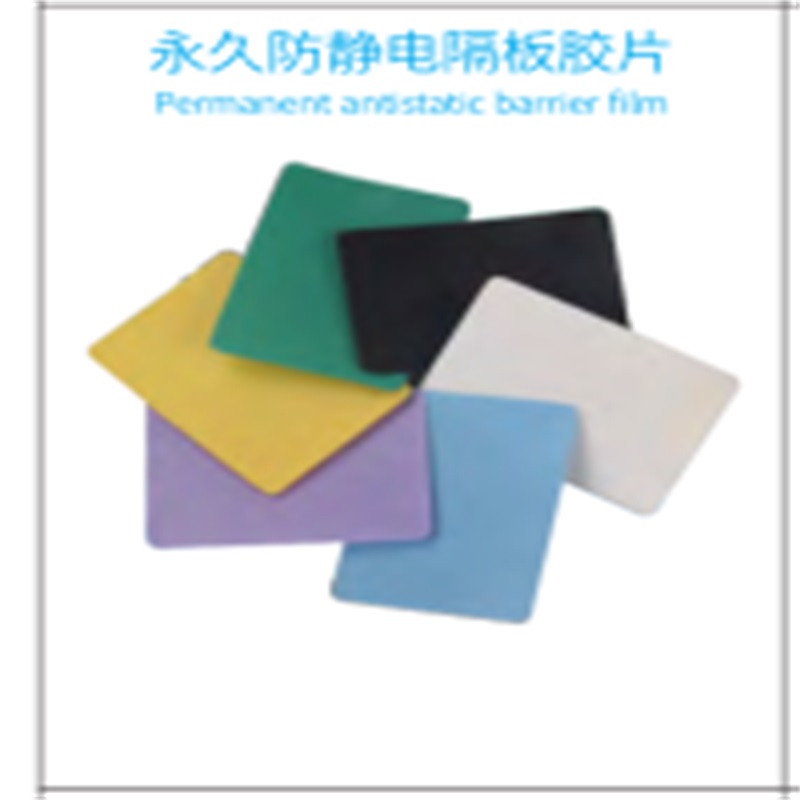

Permanent Antistatic Barrier Film

USAGE

It is suitable for isolation between production turnover layers of fine line PCB (line width 75μm) to solve problems such as equipment boards and adsorbed sundries in electrostatic environment, minimize damage to PCB boards and improve production quality.

CHARACTERISTICS

1. Permanent anti-static: The polymer material is fused to form an omni-directional conductive network, and the electrostatic performance life is dozens of times of the ordinary coating anti-static film. Anti-static performance is not affected by the environment, time, permanent as new.

2. Strong chemical resistance: From organic solvents to inorganic drugs, excellent chemical resistance, leading the industry.

3. Strong stability: Strong charge export ability makes the product no longer accumulate static electricity, even if the external humidity environment changes, the anti-static performance is stable, protect the plate from electric shock.

SPECIFICATION

ITEM                   Length       Width      Thickness     Surface Resistance     Maintenance of Resistance

                             (mm)         (mm)          (mm)

ESD01A             ≦1500       ≦760        0.3-1.0              1.00E+06                        Permanent

ESD02A             ≦1500        ≦760       0.3-1.0              1.00E+09                        Permanent

Note: ESD01 products in different humidity environment, or after repeat cleaning, will not affect the surface resistance value.
