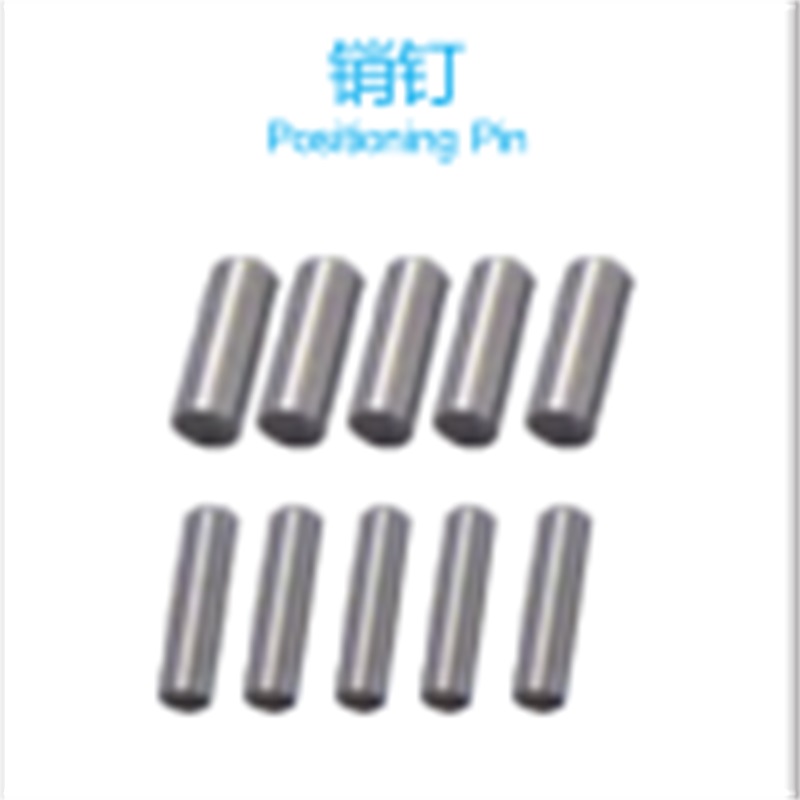

PCB Positioning Pin

USAGE

Positioning when in hole drilling and panel milling.

CHARACTERISTICS

Brightness and pureness in surface. Base materials are made by special steel.

TOLERANCE

+0.00mm/-0.01mm

SPECIFICATION

Pin for drilling use:

Diameter (a): Φ3.1, Φ3.12, Φ3.15, Φ3.175;

Length (L): 13, 15, 15.8, 18, 20.0, 21.8;

Pin for milling use:

Diameter (a): Φ0.8-5.0 (interval 0.05 each);

Length (L): 13, 15, 15.8, 18, 20.0, 21.8;

Diameter (a): Φ0.75-6.5 (interval 0.05 each)

PIN HEAD

Round head or chamfer end/ Flat head.
