PCB Exposuring Pin
Five Advantages Of Products
- Special pilot pins use for video image’s divert & exposure in single/multi-layer printed circuit board.
- TOLERANCE +0.005mm/-0.02mm
- Flat head, peak head, round head.
- -
- -
Product Details

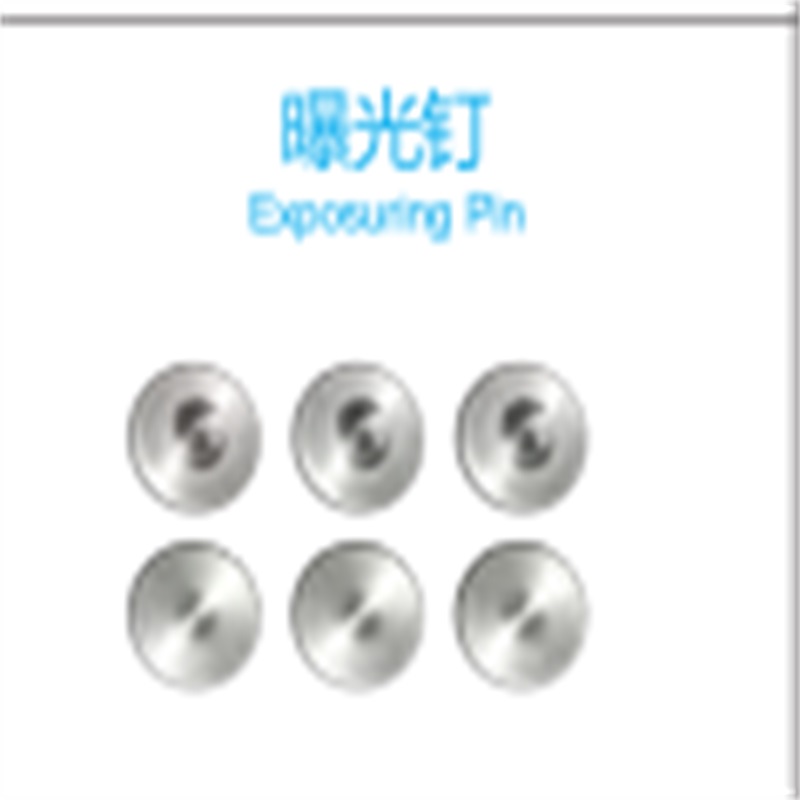

PCB Exposuring Pin
USAGE
Special pilot pins use for video image’s divert & exposure in single/multi-layer printed circuit board.
TOLERANCE
+0.005mm/-0.02mm
SPECIFICATION
Φ5.0×1.2×Φ3.1,
Φ5.0×1.5×Φ3.0,
Φ5.0×1.5×Φ3.15,
Φ6.0×1.4×Φ3.1,
Φ6.0×1.45×Φ3.15,
Φ6.0×1.45×Φ3.175
PIN HEAD
Flat head, peak head, round head.
